Feature & Function
Inward & outward openning
Stop at any position from 0-180 degree
100% anti-water, do not need cut waterproof strip
Adjust and fix the opening position
Technical information
| Opening Direction | 90° toward inside & outside | Max. loading | 45kg / 2pcs shower hinge |
| Doorstop Position: | 0° and 90° | Max door width: | height max.2000mm, width 750mm |
| Adjustable function | Yes | Salt spray test | NSS 120 Hrs |
| Self-position | 90° | Durability test | 100,000 cycles |
| self-closing | No | Warranty | 24 Months |

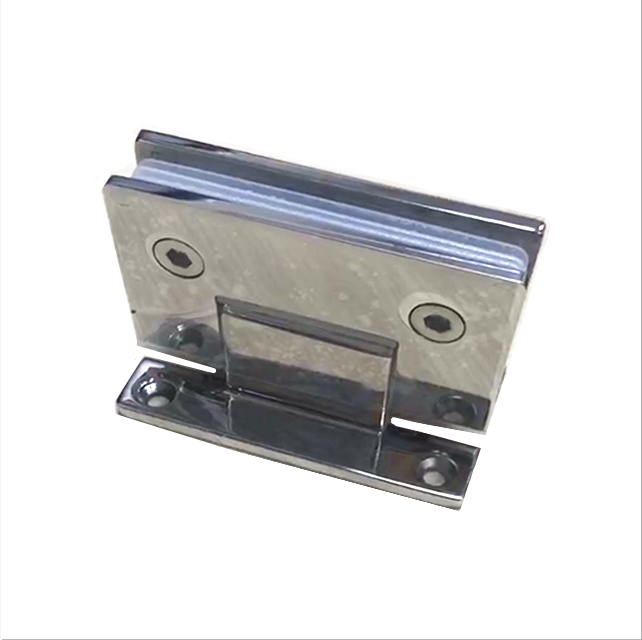

SCB120001 G-W 90° Glass door free hinge

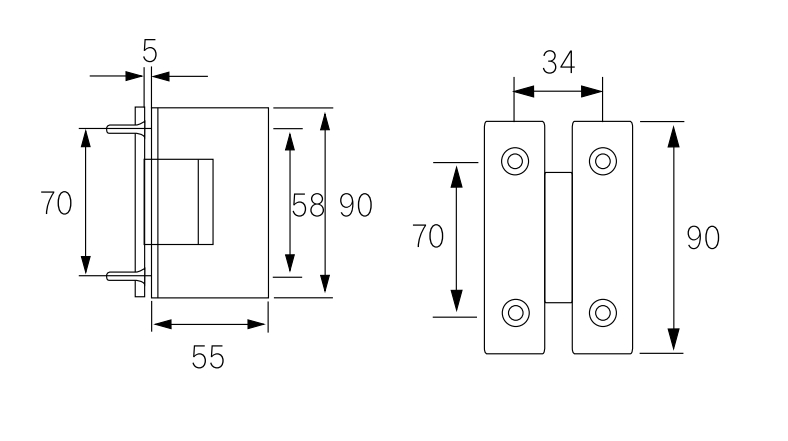

SCB120001S Production Dimension
