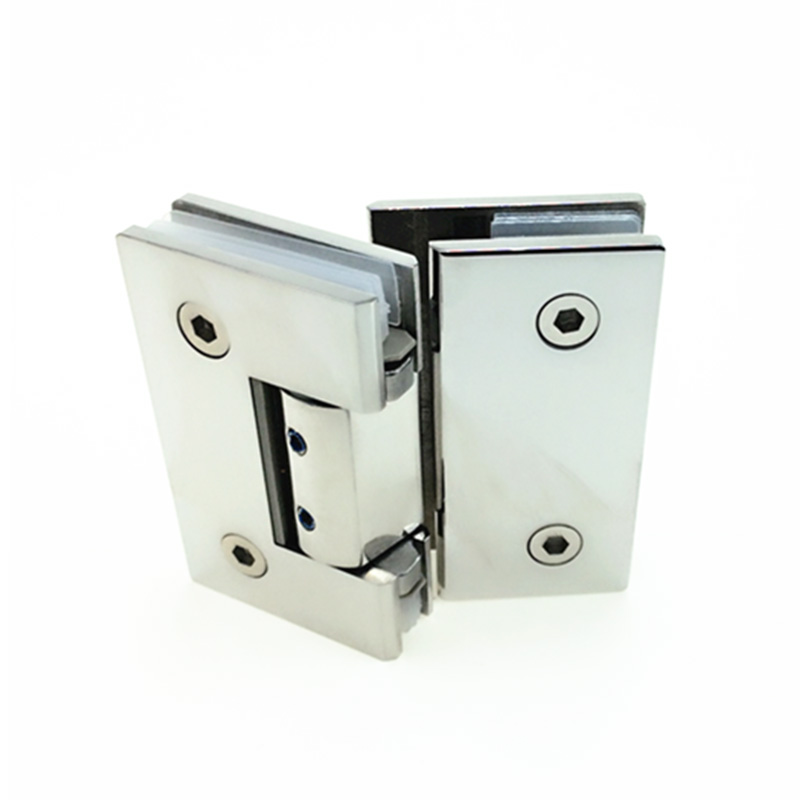

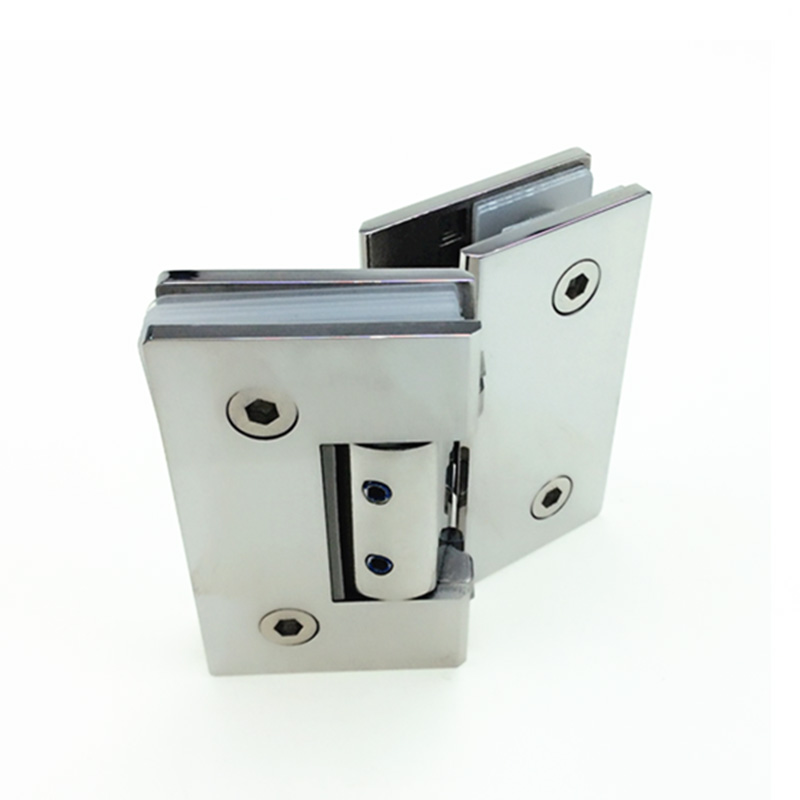

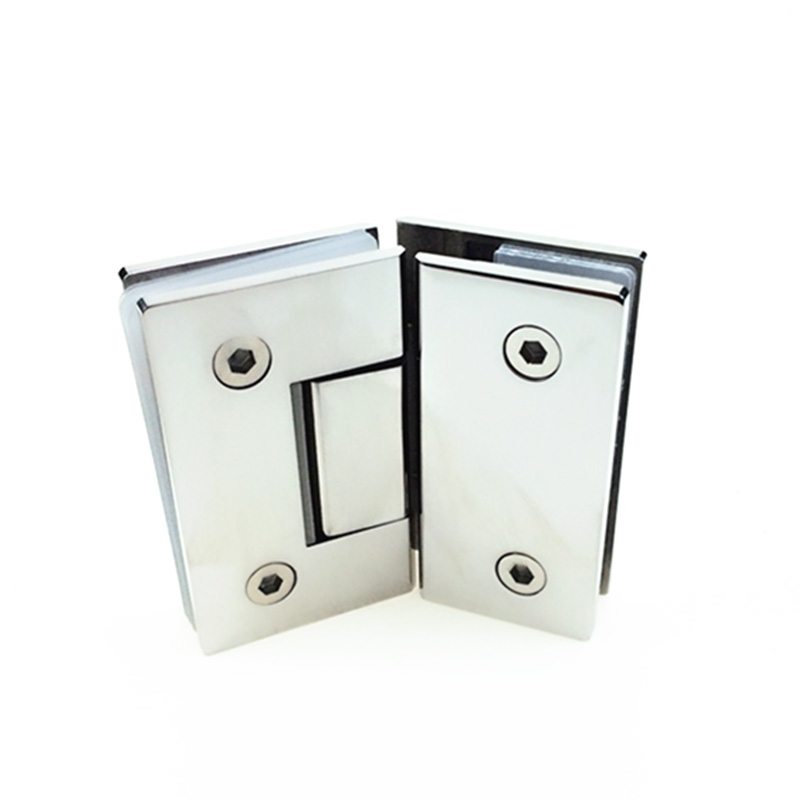

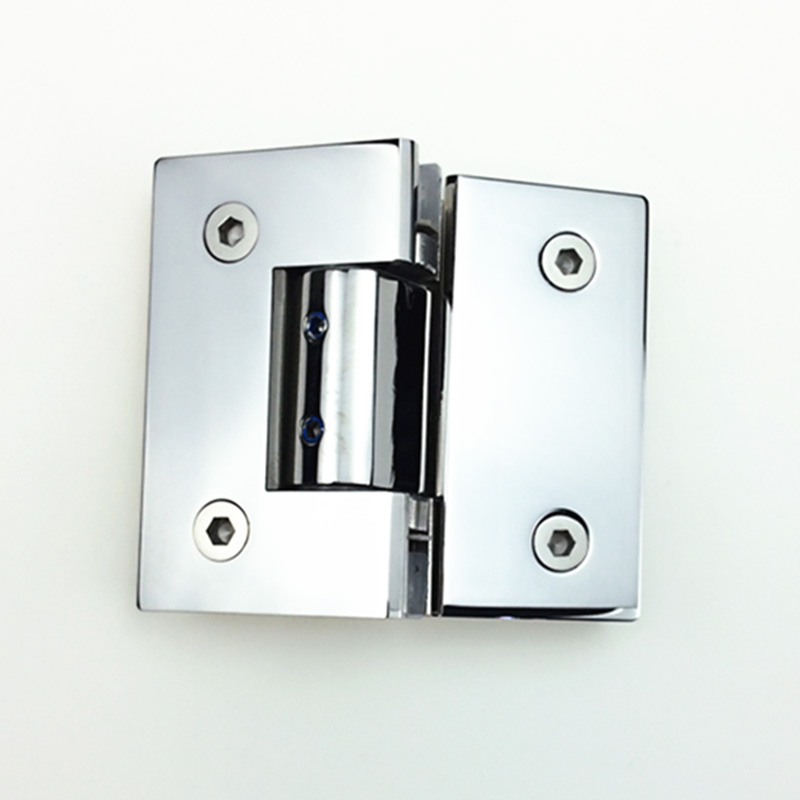

SCB120003 Adjustable Spring Free Glass Hinge - Glass To Glass 135°

Typeglass hinge
Applicationbathroom, office, glass door
Glass Thickness8 -12mm
MaterialSUS304/316
ColorSSP / SSS / PVD / ORB
Max Weight45kg / pair
Max Glass Dimension2200*750mm


Description

Feature & Function

Inward & outward openning

Stop at any position from 0-180 degree

100% anti-water, do not need cut waterproof strip

Adjust and fix the opening position


Technical information

Opening  Direction90° toward inside & outsideMax. loading45kg / 2pcs shower hinge
Doorstop Position:0° and 90°Max door width:height max.2000mm, width 750mm
Adjustable functionYesSalt spray testNSS 120 Hrs
Self-position90°Durability test100,000 cycles
self-closingNoWarranty24 Months

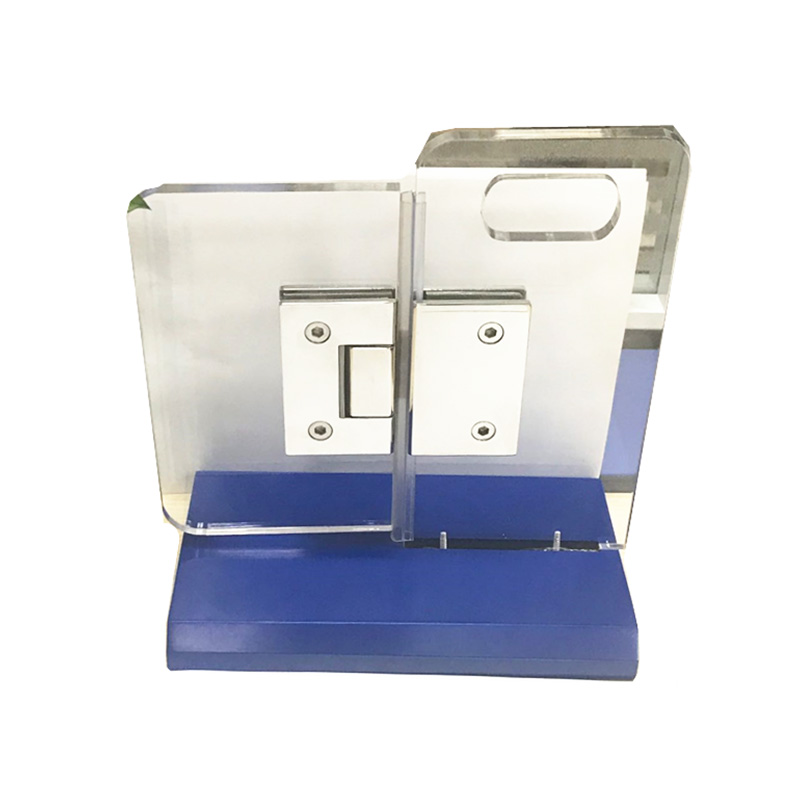

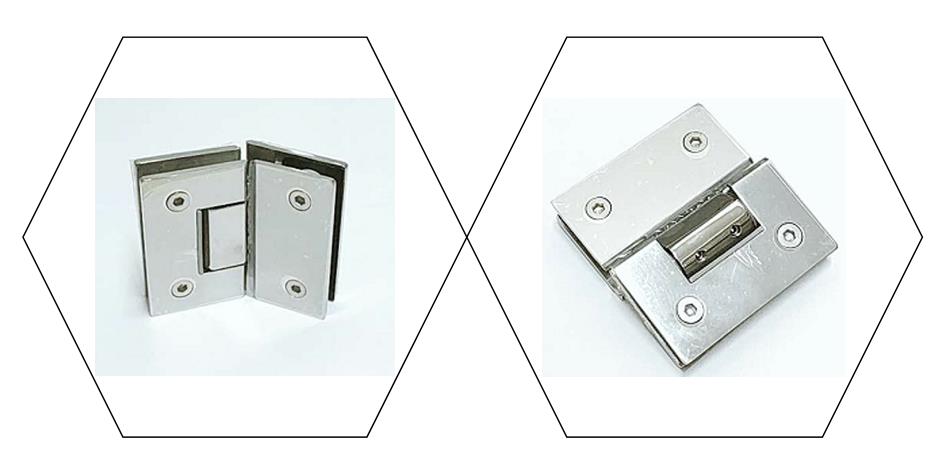

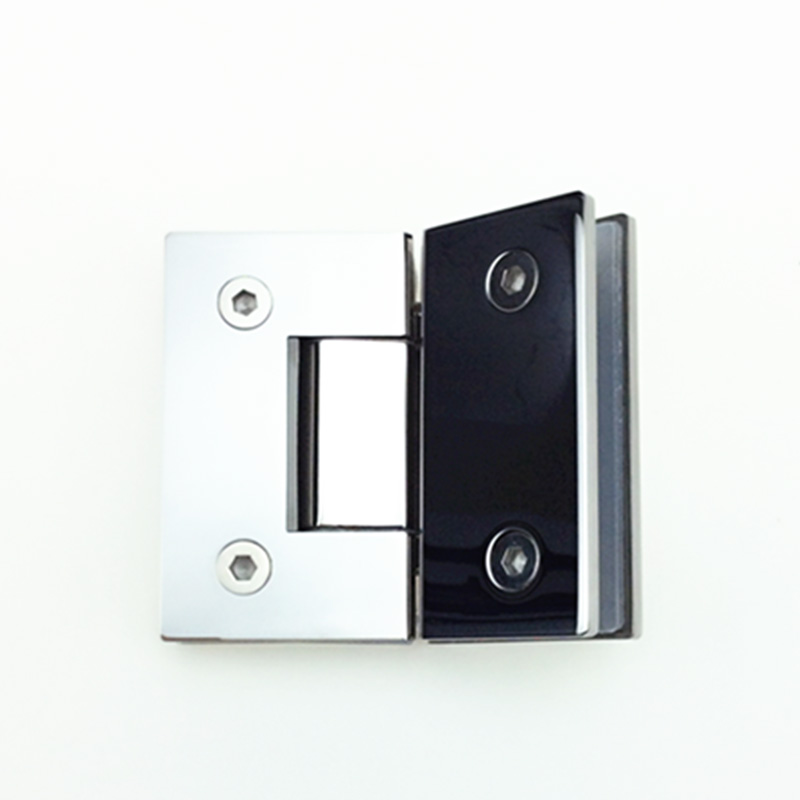

SCB120003S G-G 135° Glass door free hinge

SCB120003 Adjustable Spring Free Glass Hinge - Glass To Glass 135°

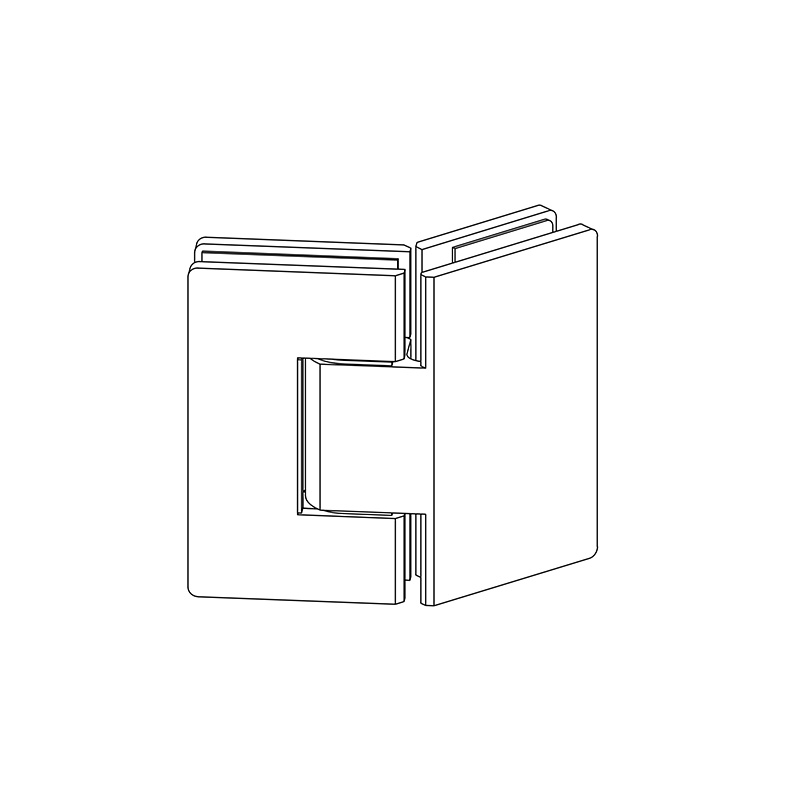

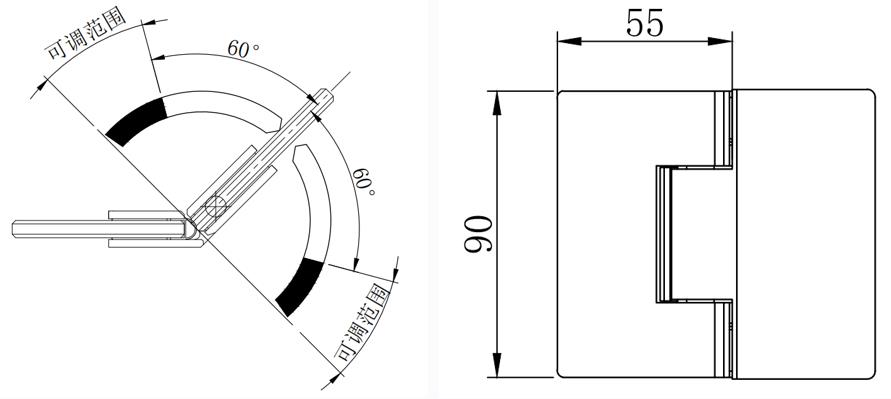

SCB120003S Production Dimension
