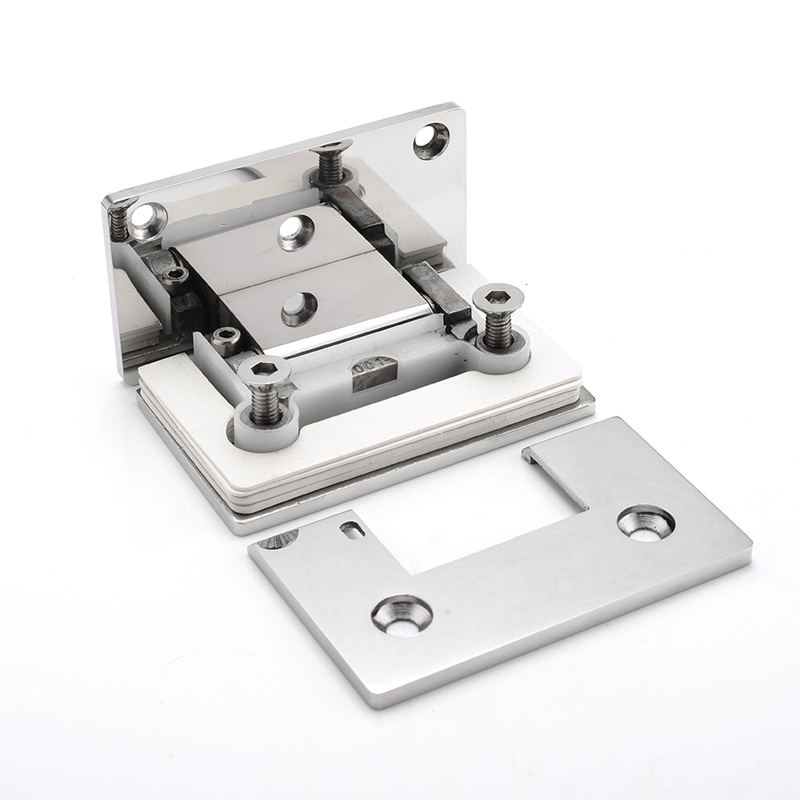

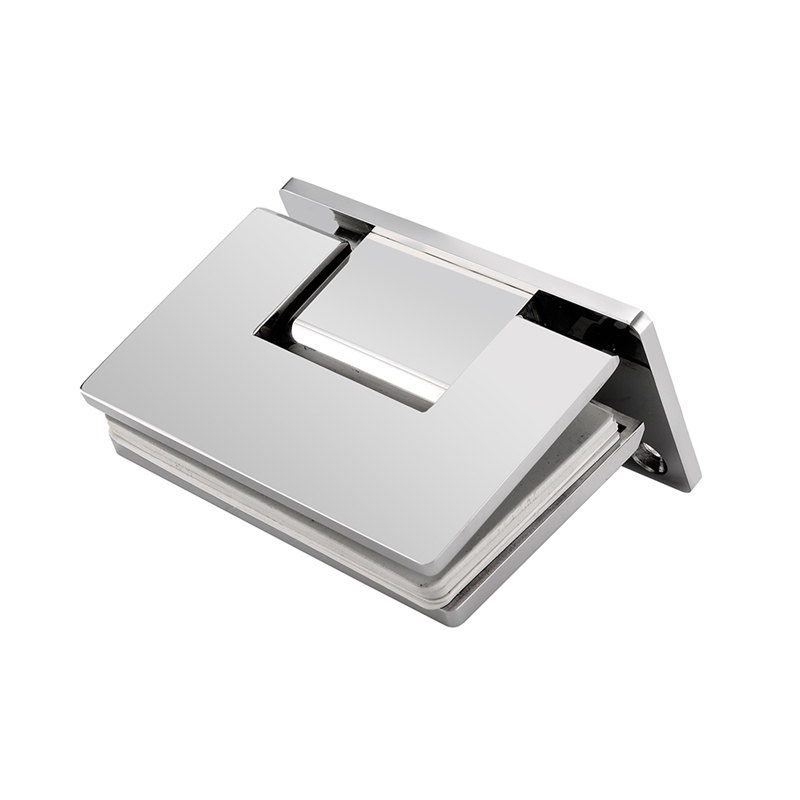

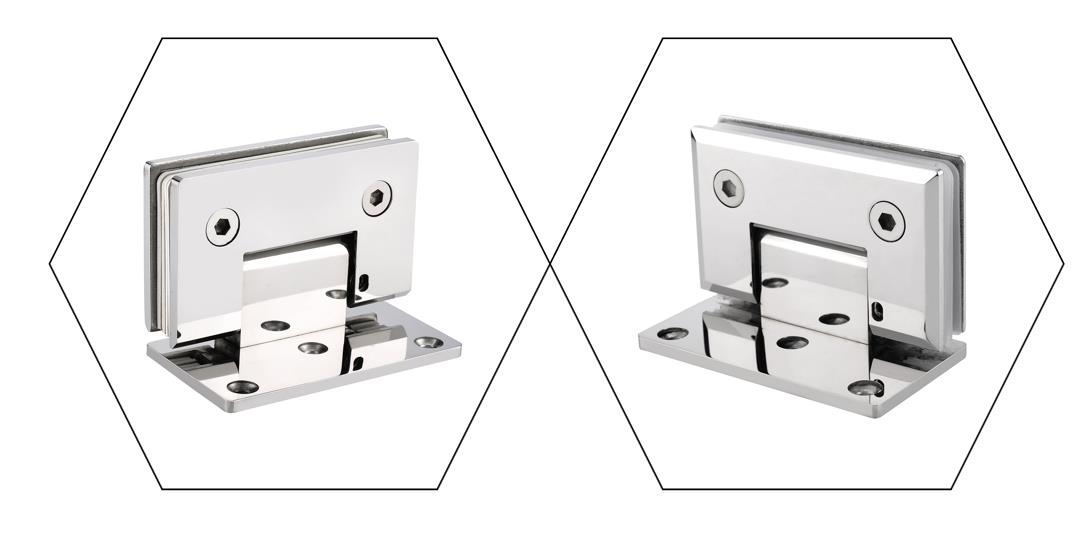

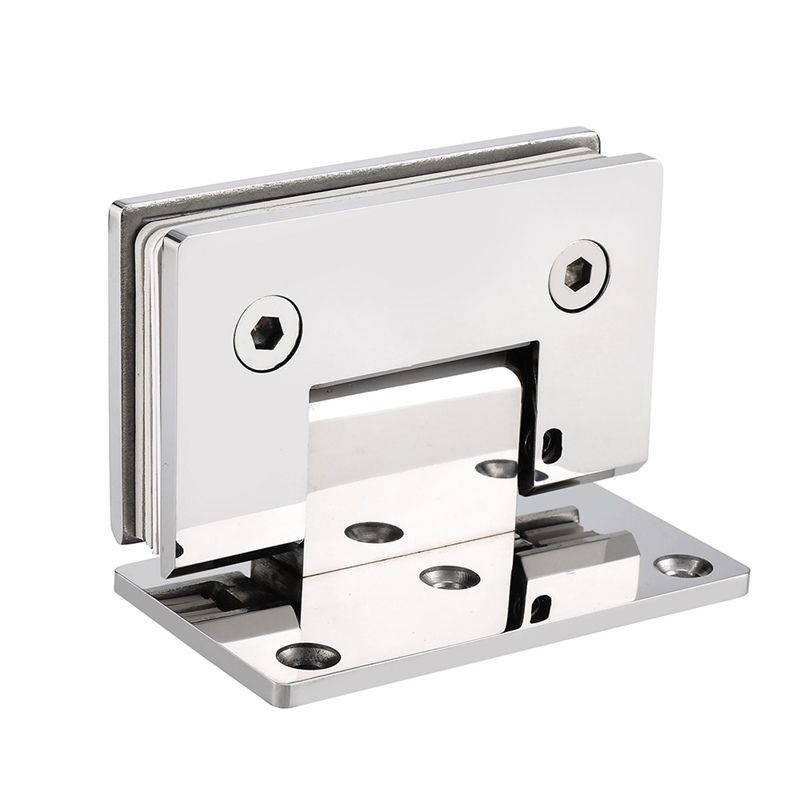

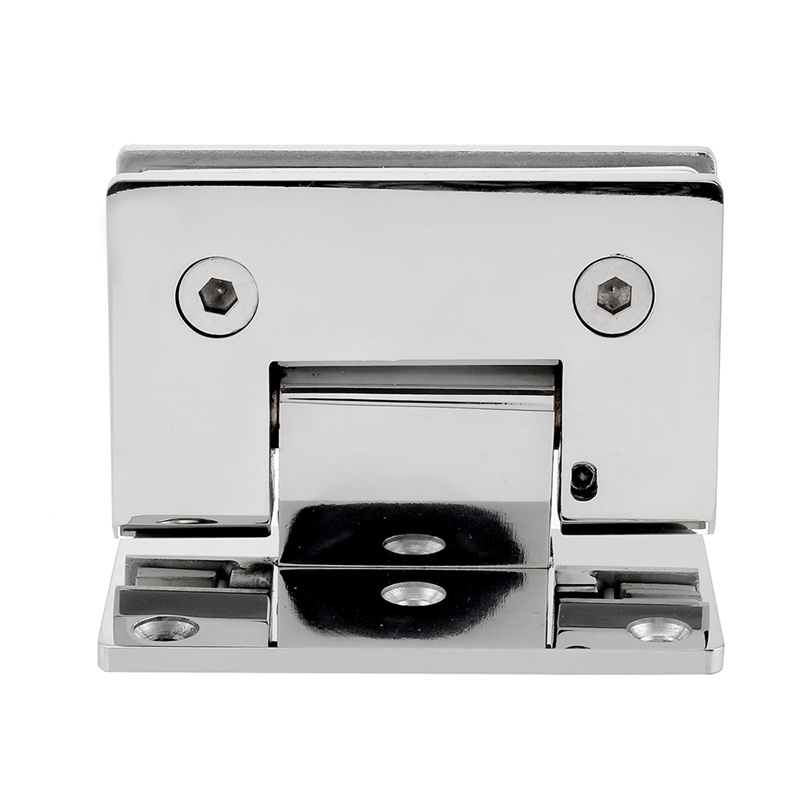

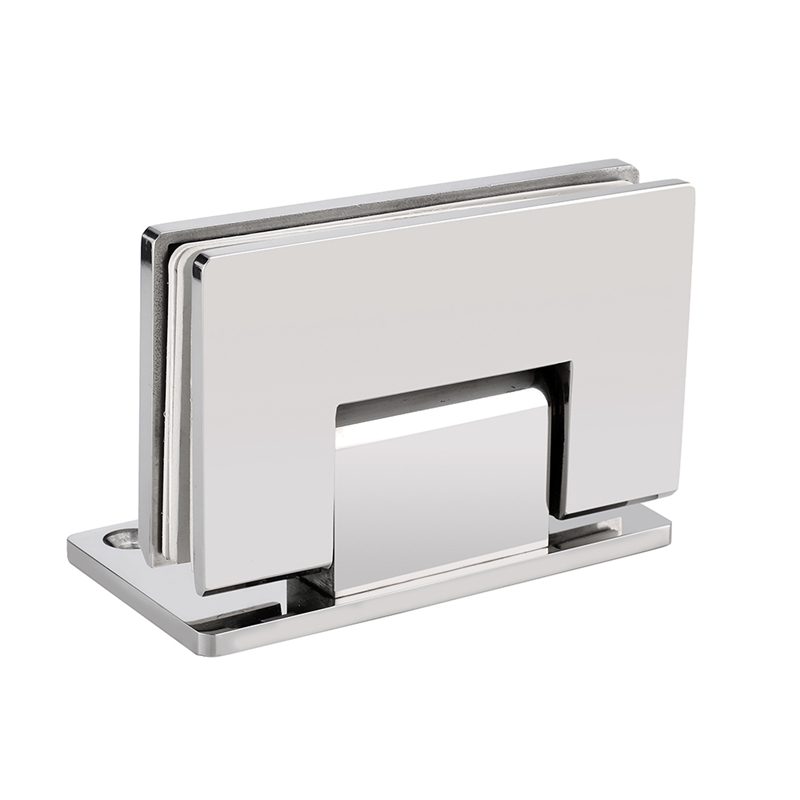

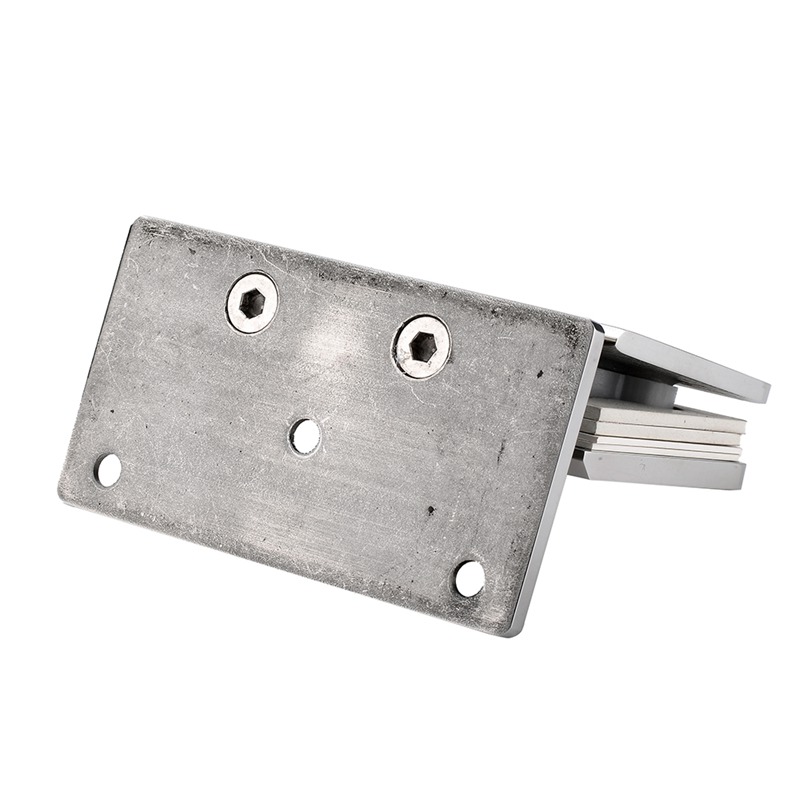

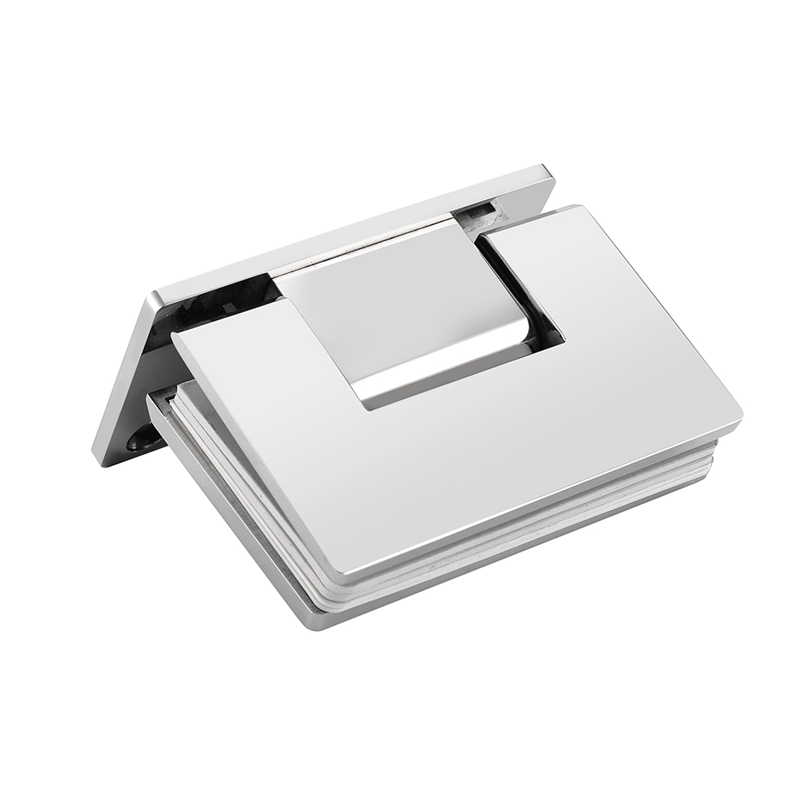

SHA060005 Adjustable Spring Glass Hinge - Eccentric Wall To Glass 90°

Typeglass hinge
Applicationbathroom, office, glass door
Door Thickness8-12mm
MaterialSUS304/316
Max Door Weight50KG/Pair
Max Door Dimension2200x750mm
Feature30°Automatically spring closing

Description

Feature & Function

Inward & outward openning

The door could be located at 0° & 90°

90° toward inside and outside opening, self-closing when the door stays at 35 Degree

Adjustable position angel between 0-45°


Technical information

Opening Direction90° toward inside & outsideMax. loading45kg / 2pcs shower hinge
Doorstop Position:0° and 90°Max door width:height max.2000mm, width 750mm
Adjustable functionYesSalt spray testNSS 120 Hrs
Self-position90°Durability test100, 000 cycles
self-closingstarts at 35° to closing positionWarranty24 Months


SHA060005S G-G 90° Glass door spring hinge

SHA060005 Adjustable Spring Glass Hinge - Eccentric Wall To Glass 90°


SHA060005S G-W Eccentric 90° Glass door spring hinge


SHA060005 Adjustable Spring Glass Hinge - Eccentric Wall To Glass 90°
