Feature & Function
Inward & outward openning
The door could be located at 0° & 90°
The door could be automatically closed within 35°
Adjust and fix the closing and opening position
Technical information
| Opening Direction | 90° toward inside & outside | Max. loading | 45kg / 2pcs shower hinge |
| Doorstop Position: | 0° and 90° | Max door width: | height max.2000mm, width 750mm |
| Adjustable function | Yes | Salt spray test | NSS 120 Hrs |
| Self-position | 90° | Durability test | 100,000 cycles |
| self-closing | starts at 35° to closing position | Warranty | 24 Months |

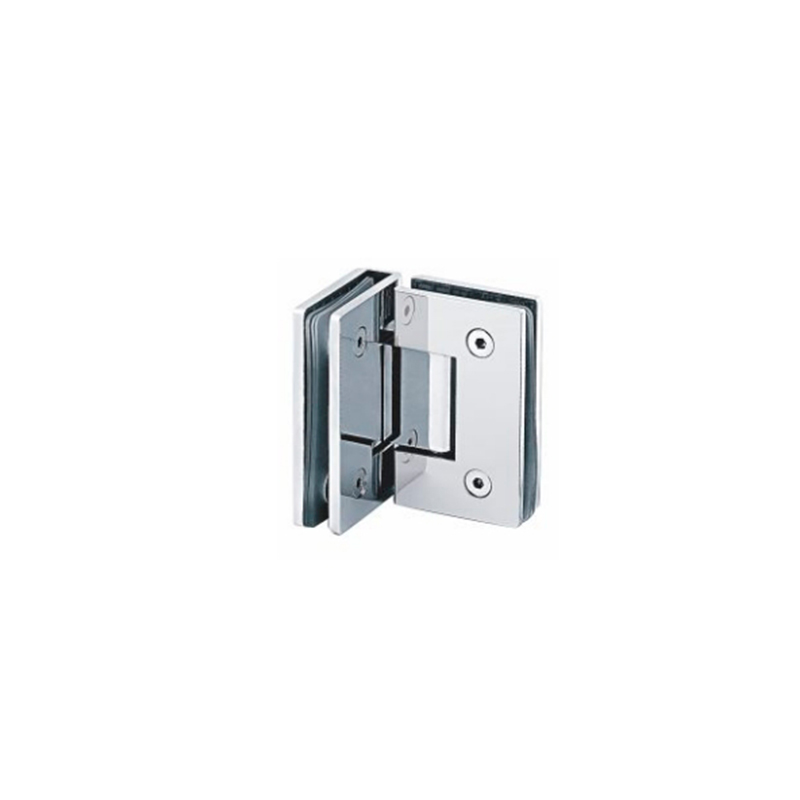

SHA210004 G-G 90° Glass door adjustable hinge

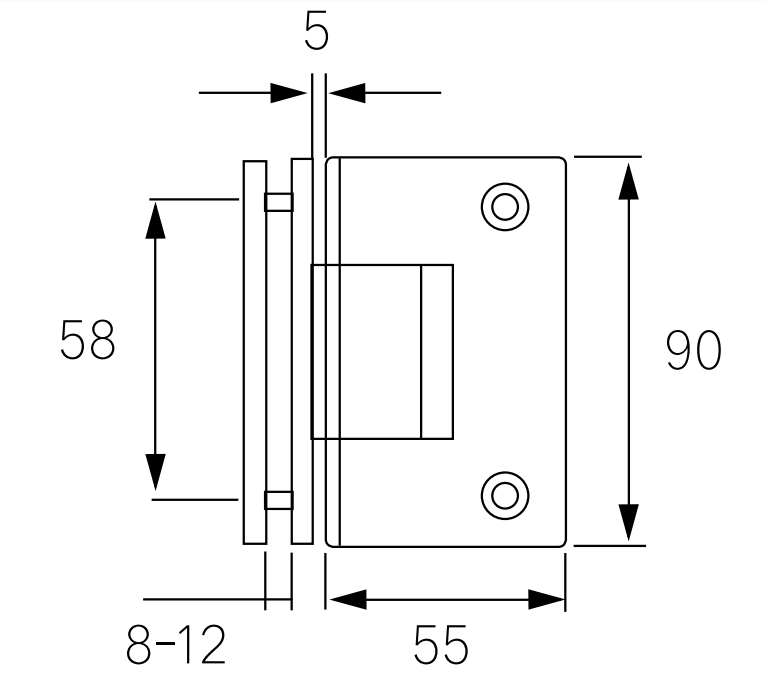

SHA210004 Production Dimension
