Type | glass hinge | ||
Application | bathroom, office, glass door | ||
Glass door thickness | 8 -12mm | ||
Material | SUS304/316 | ||
Color | SSP/SSS/SGP/ORB BLACK | ||
Max support weight | 45kg/pair | ||
Max door dimension | 2200*700mm |
Description
Feature & Function
Fully PVC seal, 100% waterproof
Hole glass cutting, prevent drooping
Freely single position opening, stop at any position
Opening angle: Outward or Inward 90°opening
Technical information
Opening Direction | 180° toward outside | Max. loading | 45kg / 2pcs shower hinge | ||||
Doorstop Position: | 0° and 180° | Max door width: | height max.2000mm, width 750mm | ||||
Adjustable function | No | Salt spray test | NSS 120 Hrs | ||||
Self-position | 180° | Durability test | 100,000 cycles | ||||
self-closing | No | Warranty | 24 Months |

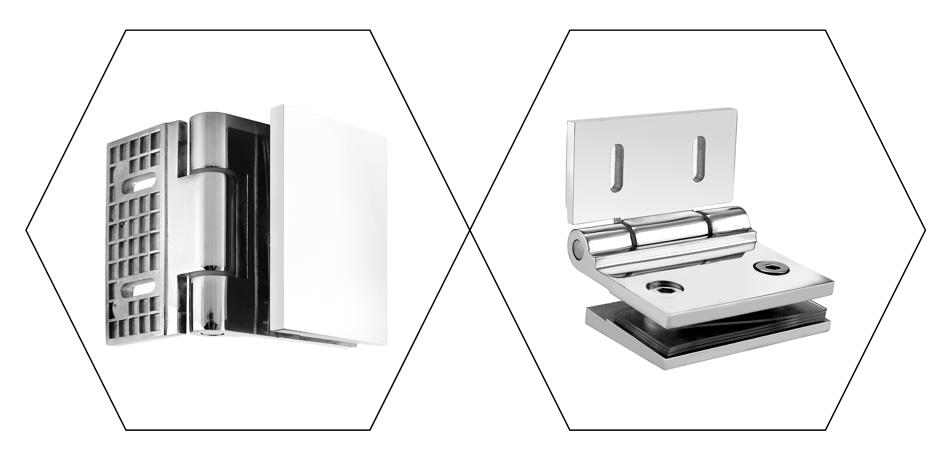

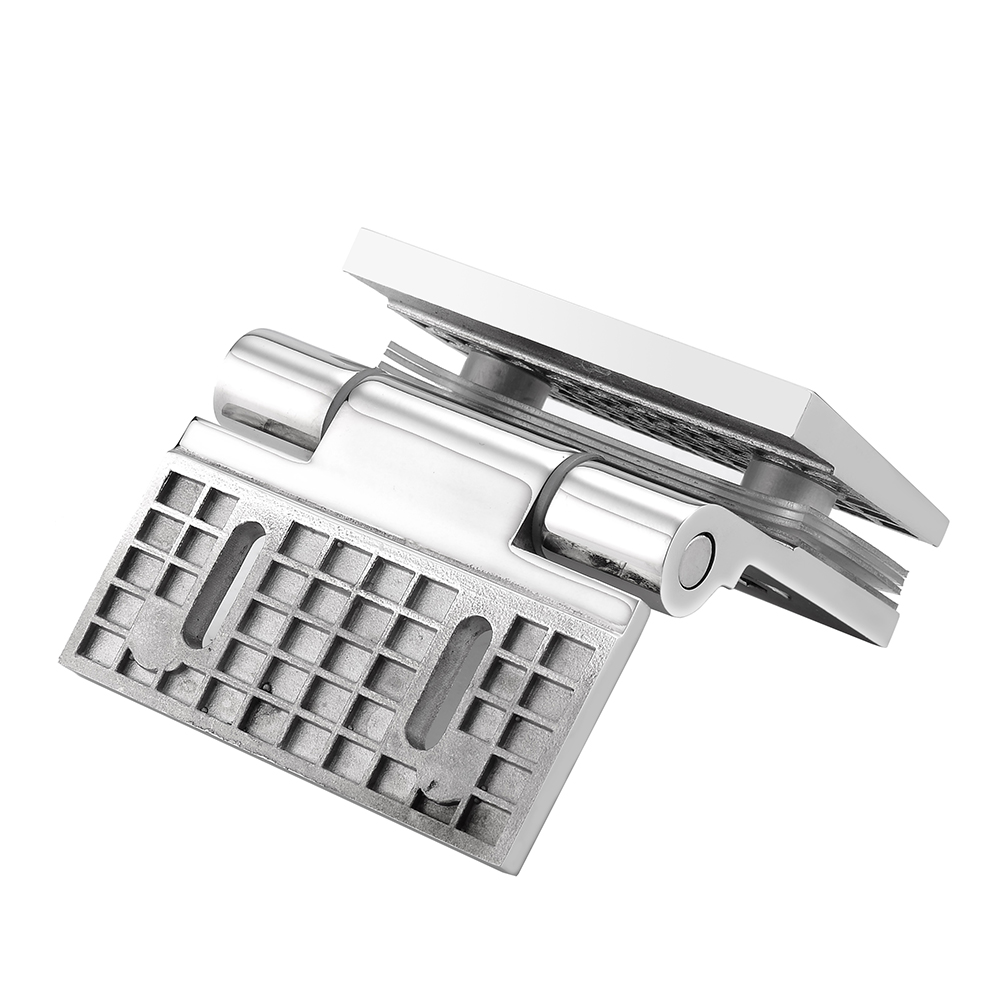

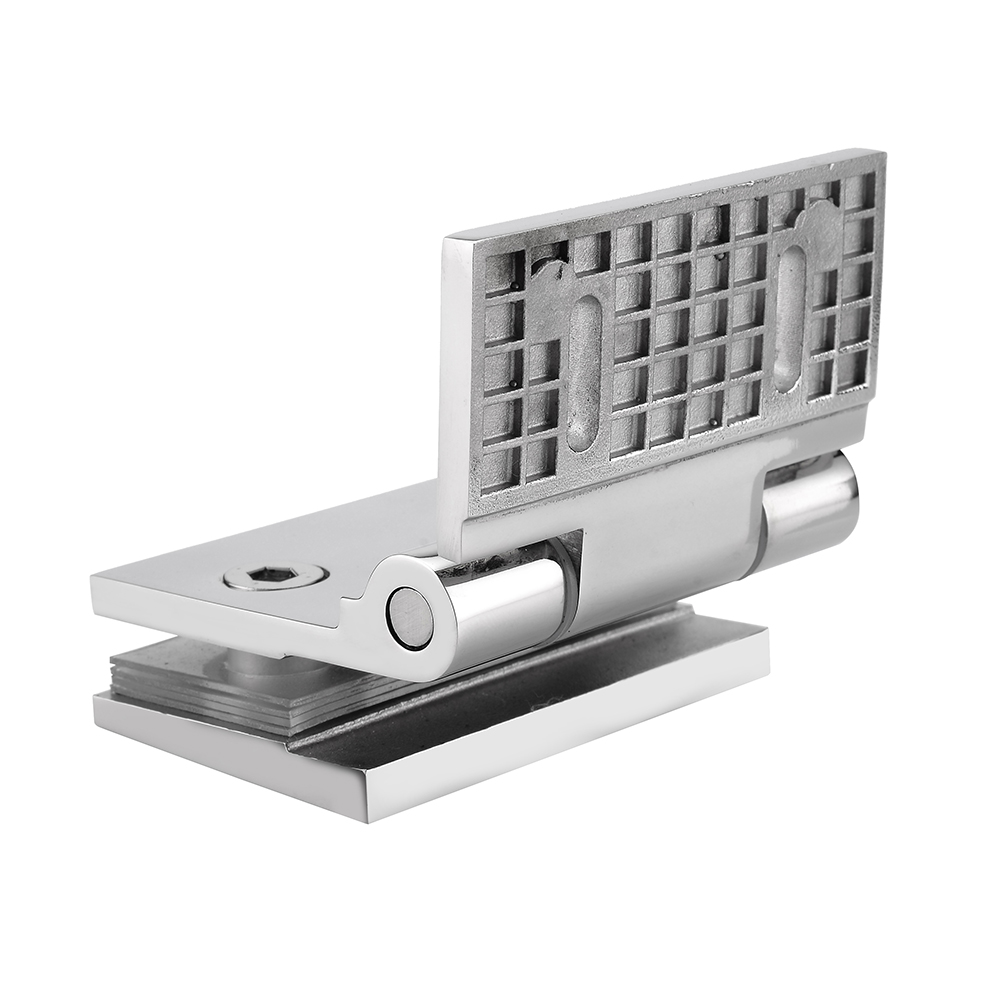

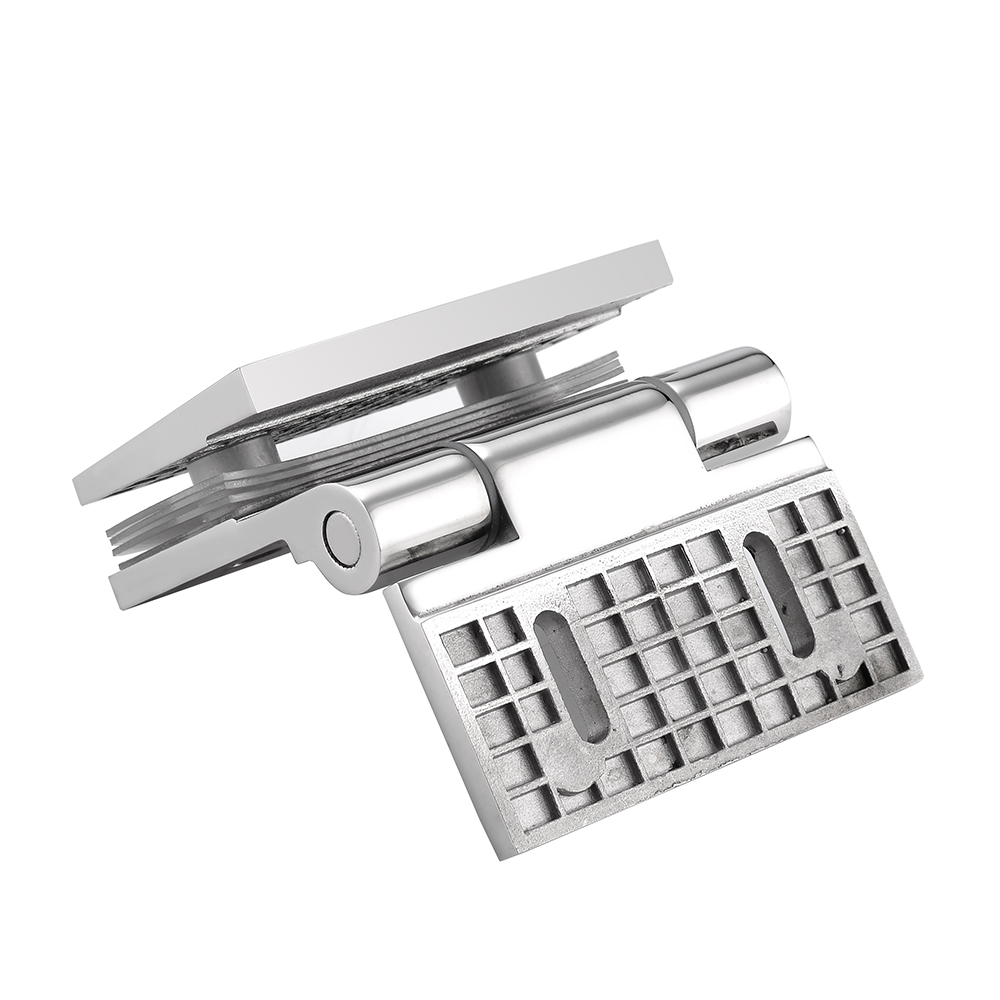

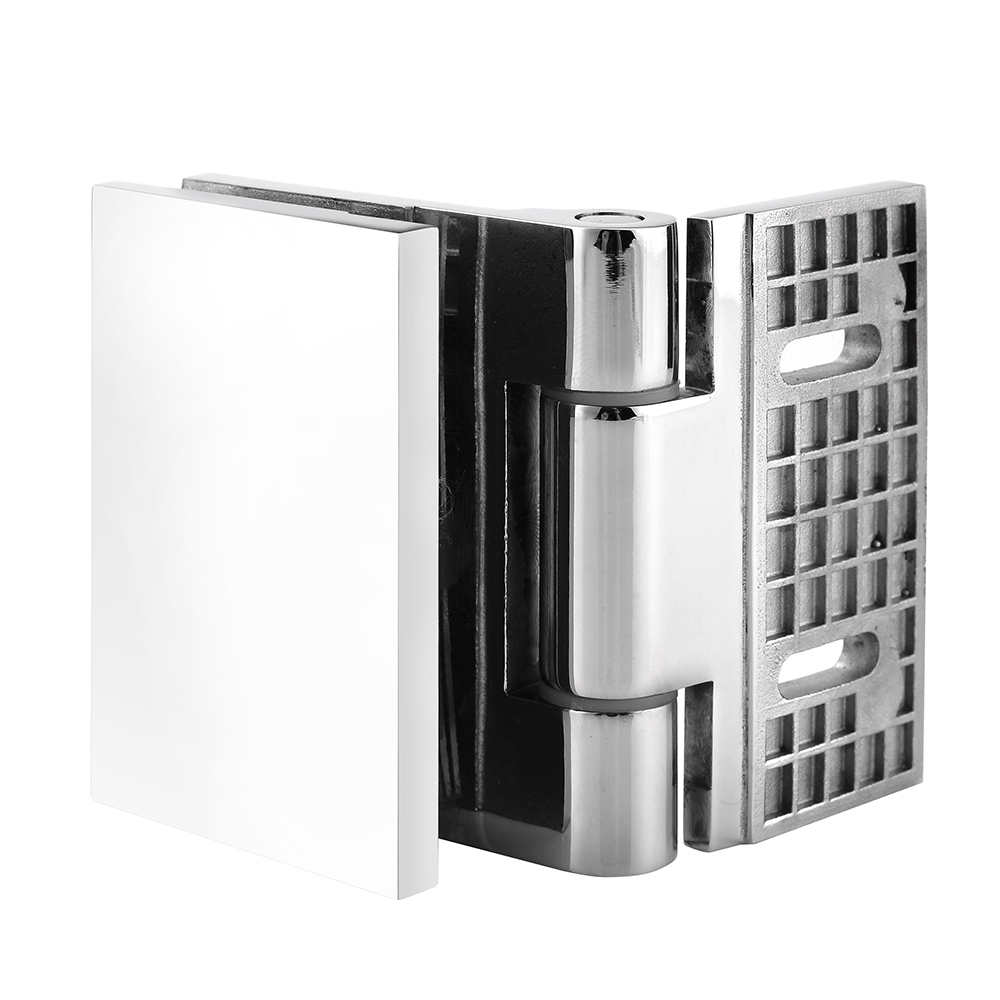

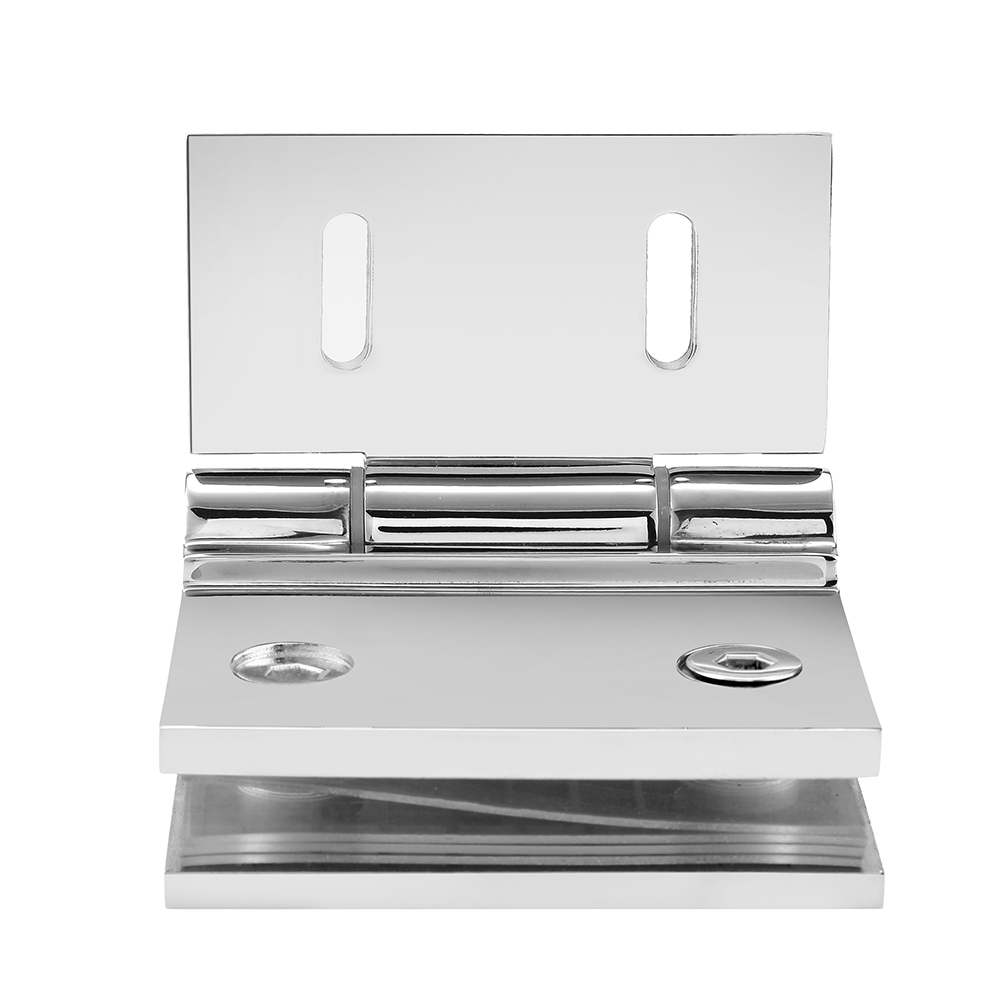

UM3081 G-W 90° Glass door free hinge

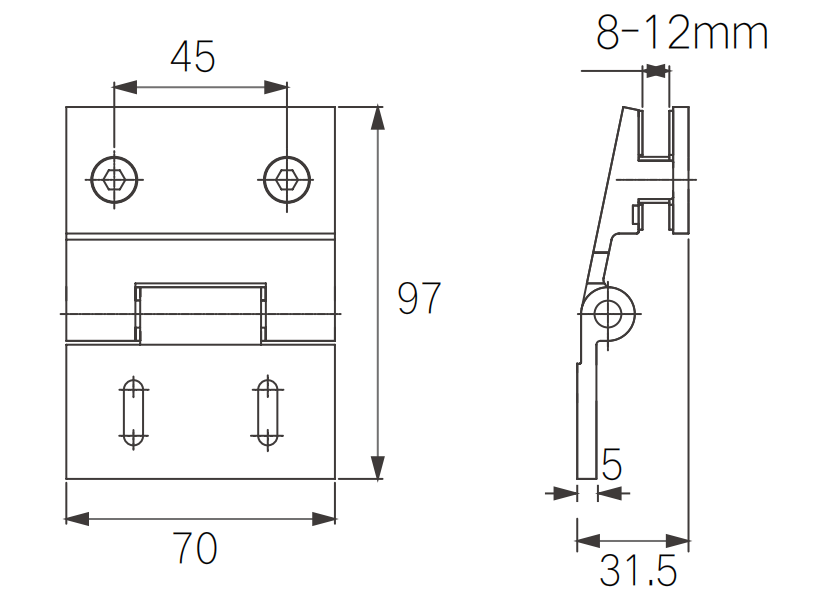

UM3081 Production Dimension
